立式中空玻璃平压生产线是生产槽铝式中空玻璃的理想设备，由上片机、清洗烘干机、检查运输机、铝框定位机、自动合片机、平压合片机、下片机等七台设备组成。背板采用高档UV漆面板，防潮性能好，美观大方。整机具有自动化程度高，效率高，易操作等特点。是投资中空玻璃项目的首选设备。

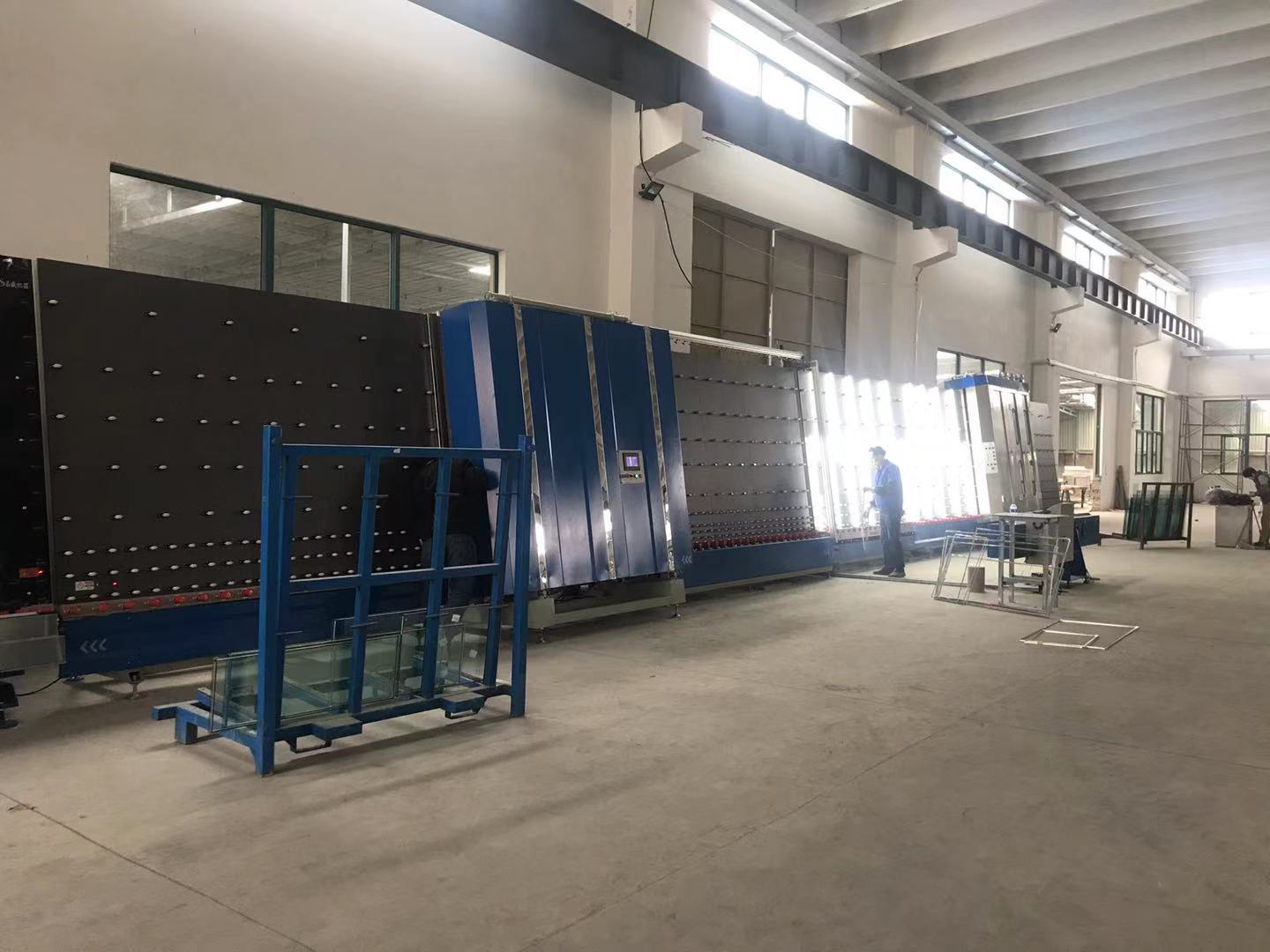

The vertical flat pressing production line for hollow glass is an ideal equipment for the production of trough aluminum type hollow glass. It consists of seven sets of equipment, including loading machine, cleaning and drying machine, inspection conveyor, aluminum frame positioning machine, automatic laminating machine, flat pressing laminating machine and unloading machine. The back plate adopts high-grade UV paint panel, with good moisture-proof performance and beautiful appearance. The whole machine has the characteristics of high automation, high efficiency and easy operation. It is the preferred equipment for investment in insulating glass projects.
2、清洗机采用全不锈钢整体箱体结构，激光定位打孔，精度高。由清洗仓、喷淋仓、风干仓等部分构成，外接水箱和强力风机。进给系统自动张紧，适合不同厚度的玻璃的清洗。具有三对进口杜邦丝软毛刷逐级清洗，可清洗镀膜及Low-E玻璃，不会对镀膜层造成任何损伤；不锈钢水箱隔置成两个独立仓，均配有给水泵及水过滤装置，分别给清洗和喷淋供水，良好地发挥出节水和高洁净清洗性能。强力风机采用循环给风，配置二对风刀逐级风干，可大大提高清洗速度。减少外部粉尘对风干玻璃的静电影响，可根据环境自主选择给风方式，清洗风干效果特别好，并且噪音小。

2. The cleaning machine adopts the whole stainless steel box structure, laser positioning and drilling, with high accuracy. It is composed of cleaning bin, spraying bin, air drying bin and other parts, and externally connected with water tank and strong fan. The feeding system is automatically tensioned, suitable for the cleaning of glass with different thickness. With three pairs of imported DuPont silk soft bristle brushes, it can clean the coating and Low-E glass step by step, without any damage to the coating layer; The stainless steel water tank is separated into two independent bins, each equipped with a water supply pump and a water filter device to supply water for cleaning and spraying respectively, thus giving good play to water saving and high cleaning performance. The powerful fan adopts circulating air supply and is equipped with two pairs of air blades to dry step by step, which can greatly improve the cleaning speed. To reduce the electrostatic impact of external dust on the air dried glass, the air supply mode can be independently selected according to the environment. The cleaning air drying effect is particularly good and the noise is small.
3、自动合片机采用自动定位、合片、预紧，无需人为干预，合片准确、快速。自动识别玻璃高度尺寸的变化，自动调整横梁高度。合片板具有双退回位置，可根据间隔条的尺寸设定不同的退回距离，保证玻璃合片的整齐度。
3. The automatic lamination machine adopts automatic positioning, lamination and pre tightening, without human intervention, and the lamination is accurate and fast. Automatically recognize the change of glass height and automatically adjust the beam height. The lamination plate has double retraction positions, and different retraction distances can be set according to the size of the spacer bar to ensure the uniformity of the glass lamination.
4、平压机后压板带有气浮装置，保护玻璃表面不被划伤，污染。前压板内置真空吸附系统，与真空发生器控制系统相比，其特点：该系统不受气源变化而影响橡胶吸盘吸力造成吸附不牢的现象。其特点是：运行稳定，压合效果好，速度快，不错片，维护成本低，使用寿命长，无易损件等优点。独有的前、后托料系统，使前后片玻璃托升至同一高度进行压合，避免了玻璃在行进轮上合片玻璃对行进轮的磨损，同时解决了由于长期使用过程中行进轮磨损造成的成品中空玻璃上下错位和玻璃碎片的问题。
4. The rear platen of the flat press is equipped with an air flotation device to protect the glass surface from scratches and pollution. The front pressure plate has a built-in vacuum adsorption system. Compared with the control system of the vacuum generator, its characteristics are that the system is not affected by the change of the air source and the suction force of the rubber suction cup is not strong. It is characterized by stable operation, good pressing effect, fast speed, good quality, low maintenance cost, long service life and no wearing parts. The unique front and rear supporting system makes the front and rear glass supports rise to the same height for pressing, avoiding the abrasion of the traveling wheel caused by the glass laminated on the traveling wheel, and solving the problems of the upper and lower dislocation of the finished insulating glass and glass fragments caused by the abrasion of the traveling wheel during long-term use.
5、整条生产线采用进口PLC和变频器控制、全中文彩色触摸屏操作和显示，方便直观的反映机器的工作状态，报警数据实时显示在触摸屏上，让操作者对机器的运行状态实时掌控，降低维护难度。具有板内自动合片、板外自动合片、单压等多种工作模式。用户可根据玻璃、铝条及丁基胶不同，自己设定不同的停止时间、压合时间及压合压力，可实现高速度和高压合质量的完美结合!用户可根据实际需要设定首片运行状态和双层中空、三层中空。人性化可自由设定的自动休眠功能，在设定时间内没有玻璃上机的情况下，机器会自动进入休眠状态，当玻璃上机后自动唤醒运行，降低了无谓的电量浪费和噪音，节能效果明显。
5. The whole production line is controlled by imported PLC and frequency converter and operated and displayed by full Chinese color touch screen, which is convenient and intuitive to reflect the working state of the machine. The alarm data is displayed on the touch screen in real time, so that the operator can control the running state of the machine in real time and reduce the maintenance difficulty. It has a variety of working modes such as automatic lamination inside the board, automatic lamination outside the board and single pressure. Users can set different stop time, pressing time and pressing pressure according to different glass, aluminum strip and butyl rubber, which can realize the perfect combination of high speed and high pressure bonding quality! The user can set the operation state of the first piece, double-layer hollow and three-layer hollow according to the actual needs. Humanized automatic sleep function that can be freely set. In the case that there is no glass on the machine within the set time, the machine will automatically enter the sleep state. When the glass is on the machine, it will automatically wake up for operation, reducing unnecessary power waste and noise, and achieving obvious energy saving effect.
选择合适的齿轮油，可以降低设备的润滑成本；帮助齿轮散热，起到一定的冷却作用；降低摩擦，减少工作噪音，减少功率损失，延长齿轮寿命；防止金属腐蚀或生锈；提高生产效率等。
Selecting proper gear oil can reduce the lubrication cost of the equipment; Help the gear to dissipate heat and play a certain cooling role; Reduce friction, reduce working noise, reduce power loss and prolong gear life; Prevent metal corrosion or rusting; Improve production efficiency, etc.
齿轮油在整个生产过程中都起到了不可忽视的作用，所以一个合适的齿轮油是必不可少的，但运行的过程中也要多加注意，避免异常状况的出现。
Gear oil plays an important role in the whole production process, so a proper gear oil is essential. However, more attention should be paid to avoid abnormal conditions during operation.
以上就是为大家介绍的有关中空玻璃生产线的详细的介绍,希望对您有所帮助.如果您有什么疑问的话,欢迎联系我们.我们将以的态度,为您提供服务http://www.jncsjx.com
The above is the detailed introduction of the insulating glass production line. I hope it will help you. If you have any questions, please contact us. We will provide you with services in a professional manner http://www.jncsjx.com
